Modular belt conveyors manufactured in the UK by Spaceguard
The positive driven plastic modular belt conveyor is able to be configured to suit a wide range of products.
Modular belt conveyors provide a reliable solution for a wide variety of conveyor applications. This type of conveyor is very versatile, with the capability to transport items horizontally, up inclines and around corners.
We also manufacture heavy-duty, modular conveyors, for more arduous environments.
The hygienic design of the modular conveyor is ideal for many areas including industrial and direct food applications.
It is particularly suitable in environments where cleaning and wash down is required, this is especially important in food processing for example.
Our team is available to discuss all your modular belt conveyor needs. They will happily advise you on the best solution to suit your requirements.
Phone: 01482 363445
Email: sales@spaceguard.co.uk
Modular Belt Conveyors
- Made to order to suit your specification
- High quality components
- Installation service available
- Parts, warranty and servicing
Modular Belt Conveyor Specification
| End diameter: | 50mm or 100mm |
| Drive type: | Geared motor |
| Drive position: | End drive |
| Belt type: | 1/2” or 1" and 2" pitch modular, open or closed pitch, side flexing available for bends |
| Frame material: | Mild steel or stainless steel |
| Conveyor finish: | Painted or 2b stainless steel |
| Conveyor widths: | 200mm to 1200mm |
| Conveyor loading: | Please contact us for details |
| Support detail: | Welded ‘H’ section (+/- 50mm) |
| Extra Options: |
|
See our latest modular conveyor manufacture projects
What is a modular conveyor belt?
Modular belt conveyors are a type of flat belt conveyor where the belt is comprised of many interlocking modules instead of a synthetic fabric. It is driven by sprockets which lock into the The modular belt’s interlocking modules are made from robust materials which tolerate low and high temperatures.
For this reason and due to the ease in which the belt can be removed and cleaned, modular conveyors are often used in the food industry. The interlocking modules of the belt also allow for air or liquids to pass through which again is beneficial in the food industry for drying items.
Modular conveyor uses
Modular belt conveyors are often used to transport:
- Small items such as screws and components
- Food & beverage products
- Plastic boxes and also totes
- Heavier items on pallets
- Cardboard boxes and packages
- Irregular shaped packages
Where are modular conveyor belts used?
Areas in which modular conveyor belts can be found include:
- Packaging lines
- Cooling and drying applications
- Assembly lines
- Tray merging and routing
- Warehousing distribution
- Clean rooms
- Pharmaceutical applications

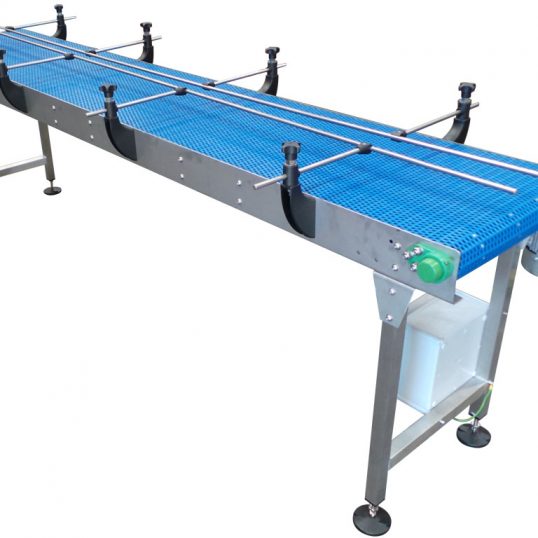

Straight running open pitch
Straight running closed pitch

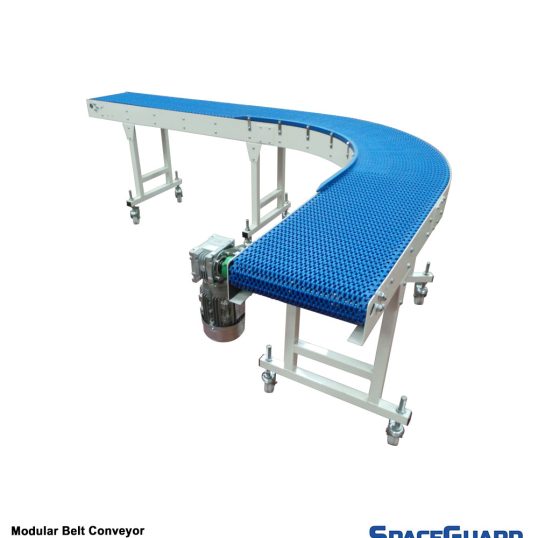

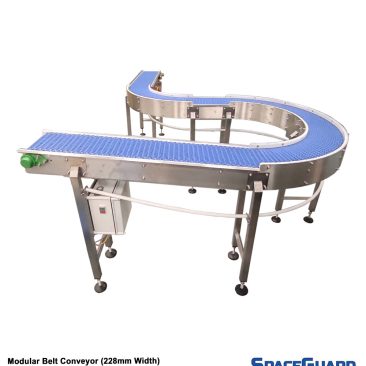

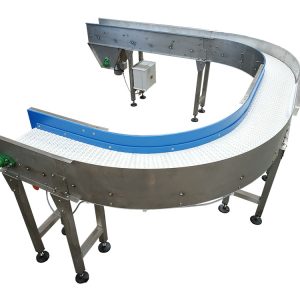

Sideflexing corner turn belt
What are the advantages of using modular belt conveyors?
Durable
The materials used to construct the belt are durable, chemical resistant, and also suitable for exposure to hot and cold temperatures (-60°C to 170°C).
If a modular belt does become damaged, it is very easy and economical to replace a small section of the belt rather than having to replace the whole belt. The parts of a modular belt link together with pins, somewhat similar to the linking methods used in metal watch straps. These links can be removed or replaced with ease and at low cost.
The modular belt also differs from a regular conveyor belt in that it does not have tracking issues. As the drive sprockets interlock with the belt itself there is little opportunity for the belt to shift or slip out of alignment when lateral force is applied.
Hygienic
The belt can be removed entirely for disinfecting and cleaning purposes within just minutes.
The modular belt can also be used in wet environments. One additional benefit of using modular belts in wet environments is that as the belt construction allows for air & liquids to pass through. This makes modular belt conveyors particularly suited for draining or drying products prior to packing.

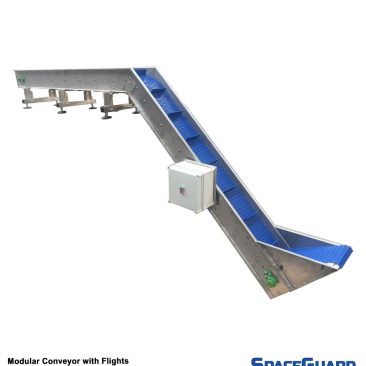

Conveyor bends and corners also become easily achievable through the use of a modular belt. Similarly flights (also known as cleats) can simply be attached to the modular belting. A flight is added to a conveyor to prevent fall back of items when travelling upwards. In contrast, regular conveyor belts flights have to be fused to the belt material itself.
Versatile
The modular belt conveyor is incredibly versatile as it is available with a range of belt material options. This allows for a wider range of objects to be transported. A regular belt conveyor for example is likely to become damaged over time when transporting sharp items. As the modular belting is constructed from plastic components it is much more suited for sharp item transport. This is why modular belts are often found in meat processing facilities.
Why choose a Spaceguard modular conveyor?
- Numerous Belt widths available to suit any application
- Designed with hygiene in mind, suitable for any food safe environment
- Modular design allows sections to be joined together to create any length
- Flexible nature of belt allows for bends and inclining sections
- Reduced downtime & quick maintenance due to belt design
- FDA approved quality materials
- No tracking issues compared to regular belt conveyors
- Quiet running & more energy efficient
- Suitable for use within wet environments
- Supplied together with manuals including material compliance information.
What are the disadvantages of using modular plastic conveyor belts?
The cost of the belting itself can be costly in comparison to a traditional conveyor belt. This is due to the labour required to create the interlocked mesh.
These conveyors also cannot run at high speeds unlike a traditional flat belt conveyor. without getting loud. In some environments this could be problematic.
Plastic modular belts also have a set pitch, meaning any belt replacement has to be an exact match to suit the existing sprockets.

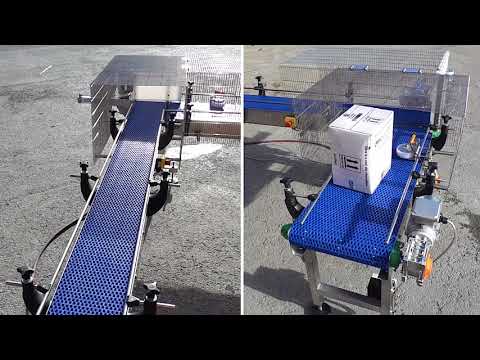

Modular Belt Example - 90 Degree Product Transfer
