Gravity Roller Conveyors

Spaceguard are UK manufacturers of standard gravity conveyors and bespoke gravity roller conveyors.

As a result, we are the ideal material handling manufacturing partner for your gravity conveyor needs. From a one off gravity conveyor for example, to a fully integrated lean packing or assembly system. You can be certain the equipment is made to the highest standards.

All gravity roller conveyors are fitted with zinc plated, PVC, or stainless steel rollers. These are mounted in a robust steel frame. coupled with powder coated paint, or a stainless steel finish. Gravity conveyors are made to suit your needs, with lengths, widths, and roller diameters to your requirements.

Phone: 01482 363445
Email: sales@spaceguard.co.uk

For advice or a quote on gravity conveyors at great prices.
Phone: 01482 363445
Email: sales@spaceguard.co.uk

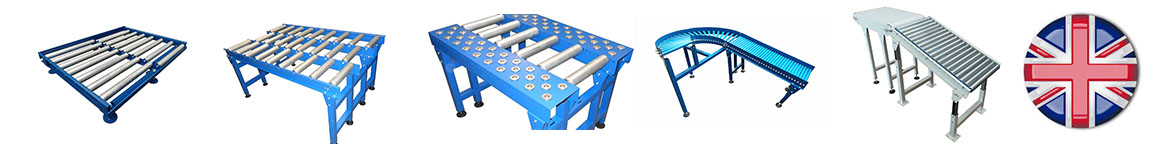

Gravity Conveyor Products

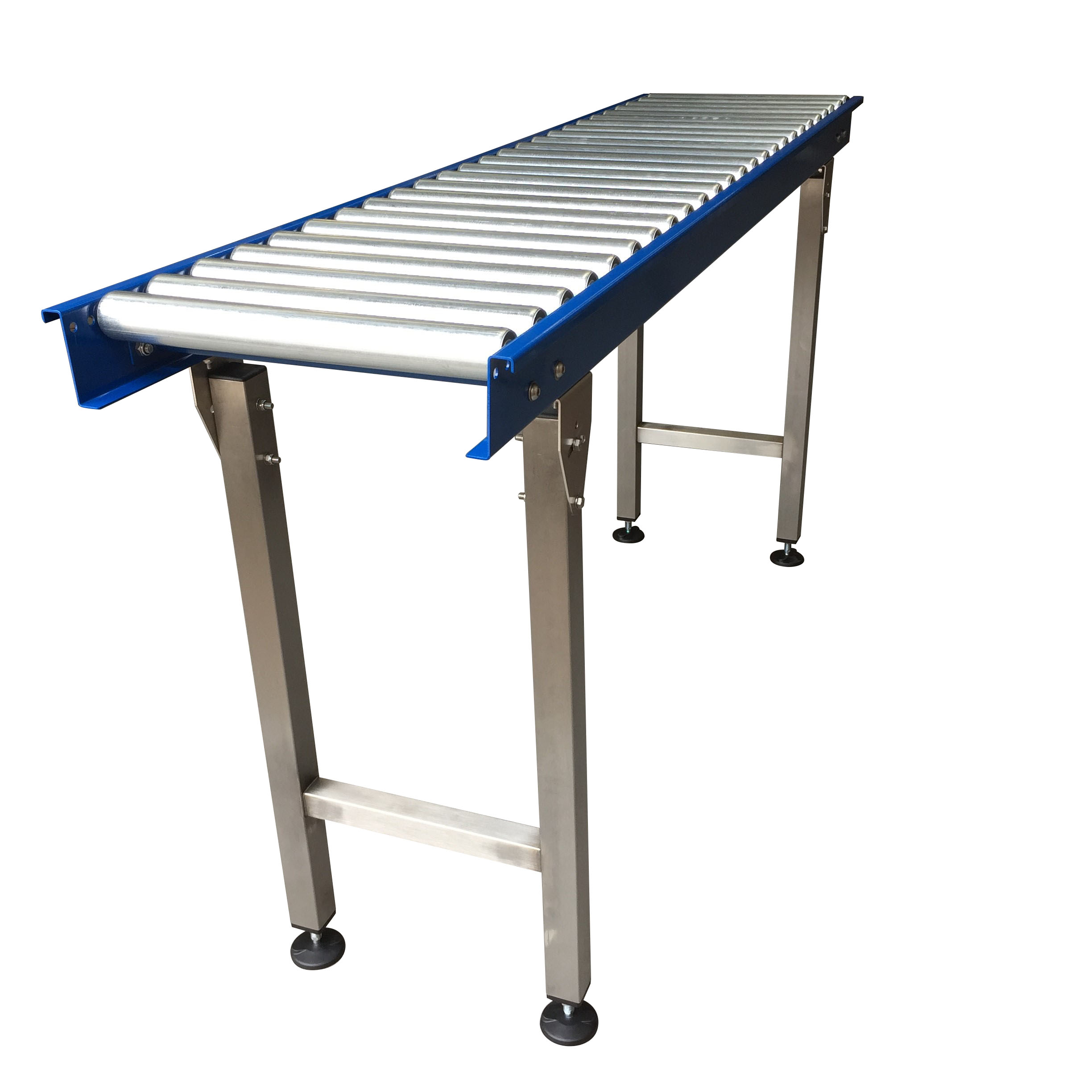

Gravity Conveyors

At Spaceguard we manufacture a wide range of both standard and bespoke gravity conveyors to suit a wide range of industrial applications. As a UK conveyor system manufacturer, we are able to custom manufacture to suit our customers requirements. We offer a short lead time on many standard products, with fast delivery by our trusted carriers. Where required we can also offer a gravity conveyor installation service, please speak to our helpful sales team should you have any questions.

gravity roller conveyor

Lean Gravity Conveyor Workstations

Gravity roller conveyors are ideal for the inclusion into assembly or order fulfilment work stations. Including the use of roller conveyors results in the reduction of manual handling, and subsequently the improvement of personnel working ergonomics.

The workstation can also include packing aids, scales, lighting, and IT equipment, and as a result yields additional productivity improvements.

These units are designed to suit your specific requirements. Ideal in this case to improve productivity and ergonomics whilst also reducing operator manual handling, giving ongoing payback on your investment.

Gravity storage roller racking

Gravity roller racking provides an ideal solution for assembly cells and also order fulfillment lines. It is up to 80% more productive compared to conventional static racking.

The use of Carton flow racking also allows staff to be more productive by reducing manual handling. As a UK manufacturer Spaceguard is able to build first in first out, or push back racking, to suit your specific products.

A Bespoke fluid handling gravity roller conveyor

Special use gravity roller systems

As well as bespoke roller conveyors, Spaceguard also manufactures products for managing waste fluids. For example, coolants and oils.

In this area Spaceguard has many years of experience. We also deliver solutions which safely and cleanly manage liquids within your production areas.

Previous uses include for example, aircraft wheels, and machined engine parts. Also for paint production, and oil manufacturing. Delivering to you robust special application roller conveyors which especially suit your needs.

Flexible conveyors

A wide range of Flexible conveyors are also available from Spaceguard.  These are suitable for use within loading areas of warehouses for example.

All flexible conveyors are built with a high quality steel lattice frame, together with a choice of skate wheels or full width conveyor rollers.

Conveyor lift up gate

Conveyor pedestrian access lift up gates

The conveyor lift up gate. Allows for access through fixed conveyor lines. These are generally for warehouse pathways or emergency access routes.

Spaceguard lift up gates are manufactured using a pivot bush. Giving additional strength to the gate. The weight of the gate section is supported by industrial gas springs. This as a result makes the gate light to operate. When positioning the gate - note should be taken to the product on the conveyor. To ensure it doesn't fall off.

Incidentally it may be possible to use the gate section as a stop. This section of roller track should also only be used in horizontal applications with either gravity or driven roller.

Gravity roller conveyor cross section

The Conveyor rollers used within Gravity roller conveyors ordinarily have a spring loaded shaft for easy removal, or a female threaded shaft.

Gravity Conveyor Technical Specification

Roller Diameter 20mm
Roller Material PVC
Roller Pitches 22mm

Note: As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support

Roller Bearing Plastic housed semi precision
Frame Detail 60mm deep
Frame Material Painted mild steel or stainless steel for food applications
Frame Thickness 2.0mm
Conveyor Finish RAL 5010 - Other colours available
Conveyor Widths 100 to 500mm
Conveyor Loading 5kg per meter
Support Detail Welded 'H' section (+/- 50mm)
System Components
  • Straight gravity modules
  • Parallel roller bends: 30, 45, 90 degrees
  • Lift up gates
  • Merge sections
  • Side Guides
  • End Stops
Roller Diameter 30mm
Roller Material PVC
Roller Pitches 32mm, 64mm

Note: As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support

Roller Bearing Plastic housed semi precision
Frame Detail 60mm deep
Frame Material Painted mild steel or stainless steel for food applications
Frame Thickness 2.0mm
Conveyor Finish RAL 5010 - Other colours available
Conveyor Widths 100 to 500mm
Conveyor Loading 15kg per meter
Support Detail Welded 'H' section (+/- 50mm)
System Components
  • Straight gravity modules
  • Parallel roller bends: 30, 45, 90 degrees
  • Lift up gates
  • Merge sections
  • Side Guides
  • End Stops
Roller Diameter 50mm
Roller Material Mild steel zinc plated, PVC
Roller Pitches 53mm, 78mm, 104mm, 130mm, 156mm (+26mm)

Note: As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support

Roller Bearing Plastic housed semi precision
Frame Detail 100mm deep
Frame Material Painted mild steel
Frame Thickness 2.5mm
Conveyor Finish RAL 5010 - Other colours available
Conveyor Widths 100 to 1000mm
Conveyor Loading 50kg per meter
Support Detail Welded 'H' section (+/- 50mm)
System Components
  • Straight gravity modules
  • Parallel roller bends: 30, 45, 90 degrees
  • Lift up gates
  • Merge sections
  • Side Guides
  • End Stops
  • Transfer Cars
Roller Diameter 50mm
Roller Material Mild steel zinc plated
Roller Pitches 53mm, 78mm, 104mm, 130mm, 156mm (+26mm)

Note: As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support

Roller Bearing Steel housed semi precision
Frame Detail 100mm deep
Frame Material Painted mild steel or Stainless steel
Frame Thickness 4.0mm
Conveyor Finish RAL 5010 - Other colours available
Conveyor Widths 100 to 1000mm
Conveyor Loading 100kg per meter
Support Detail Welded 'H' section (+/- 50mm)
System Components
  • Straight gravity modules
  • Parallel roller bends: 30, 45, 90 degrees
  • Lift up gates
  • Merge sections
  • Side Guides
  • End Stops
  • Transfer Cars
Roller Diameter 63mm
Roller Material Mild steel zinc plated
Roller Pitches 78mm, 104mm, 130mm, 156mm (+26mm)

Note: As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support

Roller Bearing Steel housed precision
Frame Detail 100mm deep
Frame Material Painted mild steel or Stainless steel
Frame Thickness 4.0mm or 6.0mm
Conveyor Finish RAL 5010 - Other colours available
Conveyor Widths 100 to 1300mm
Conveyor Loading Up to 1200kg per meter
Support Detail Welded 'H' section (+/- 50mm)
System Components
  • Straight gravity modules
  • Parallel roller bends: 30, 45, 90 degrees
  • Lift up gates
  • Merge sections
  • Side Guides
  • End Stops
  • Transfer Cars
Ball Diameter 22mm
Ball Material Mild steel zinc plated
Ball Pitches 52mm, 78mm, 104mm (+26mm)
Roller Bearing Steel housed precision
Frame Detail 100mm deep
Frame Material Painted mild steel or Stainless steel
Frame Thickness 4.0mm
Conveyor Finish RAL 5010 - Other colours available
Conveyor Widths 80m to 2000mm
Conveyor Loading Up to 250kg per meter
Support Detail Welded 'H' section (+/- 50mm)
Ball Layout Square or Diamond

Gravity Conveyor Gallery

What is a Gravity Conveyor?

A gravity conveyor is an un-powered roller conveyor which uses either manual force, or gravity decline to move products along the conveyor. As a rule, when used on an incline the product must have sufficient weight to allow the conveyor rollers to turn. Additional braking may be required if particularly heavy loads are used.
