24V Powered Roller Conveyors

24v Powered Roller Conveyors Manufactured by Spaceguard

24v DC powered roller conveyors, also known as driven roller conveyors or motorized roller conveyors, are an ideal conveyor solution for transporting boxes, totes, and other flat-bottomed items in warehousing, manufacturing, food production, and other industrial environments.

Each bank of rollers is driven by a 24-volt DC drive which is contained within a drive roller. As this motorised roller turns, it simultaneously turns adjacent rollers that are linked to the drive roller by the use of Polyurethane O-rings. Or Poly V drive for duty applications.

The 24v DC is available in a fixed drive or zoned zero pressure driven conveyor is an energy-conscious conveyor option as the rollers only draw power as needed, this also offers the additional cost-saving benefit of reducing component wear and tear.

This type of roller conveyor is available for both fixed drive transportation and for zero line pressure accumulation which helps to prevent product damage.

We can provide these conveyors as straights and bends, with merges and switches – all equipment is delivered fully assembled and wired where possible, or can be installed and set up by our on-site installation team.

Our team regularly works with businesses to meet all their driven roller conveyor needs. We also offer gravity roller conveyors in addition to powered varieties, as well as flexible conveyors, and also bespoke options.

Please contact our knowledgeable sales team to discuss your requirements.

For all enquiries please contact our helpful design & sales teams

Phone: 01482 363445
Email: sales@spaceguard.co.uk

Request a Free Quote or Site Visit

Please fill in the form below, and a specialist will contact you to find out about your exact needs, possibly schedule a site visit and/or provide a comprehensive quote.

If you would like a quote immediately, please provide some details about what you need including dimensions where possible. If you don’t know exactly what you need, just let us know what you’re trying to achieve and we will help you find the most suitable products.

24V Powered Roller Conveyors Made To Order

We manufacture fully bespoke powered roller and belt conveyor systems for all types of unit handling applications including transport between floors using mezzanine conveyors.
Where required, we can offer site visits to plan your conveyor layout or to observe your current system and offer advice on where improvements can be made.

Please contact our sales team to discuss your specific requirements on 01482 363445 or email sales@spaceguard.co.uk

We work with businesses to provide bespoke 24V powered roller conveyors

So far we've helped over 1673 businesses get the equipment they need!

Follow these simple steps to get your bespoke 24V powered roller conveyors

Consider your requirements

What do you need from your 24V powered roller conveyors?

Do you need storage, packaging dispensers, IT integration, or accessories?

We will offer advice if you need any help.

Tell us what you need

Once you know what you want, send it over to us.

Our expert in-house design team will then produce 3D drawings & renders so you can visualise your 24V powered roller conveyors clearly.

We email your quotes to you

At this point, you can make changes as necessary before finalising the design.

Once you’re happy with it we can discuss your preferred payment method & terms.

We make your 24V Powered Roller Conveyors

Once payment terms have been agreed, our skilled manufacturing team will build your 24V powered roller conveyors.

You can have them installed or shipped directly to you from our East Yorkshire factory.

24V Powered Roller Conveyor

Load: 0 to 50 kg/m
Speed: 1 to 60 m/min
Roller Pitch: 75mm, 100mm, 125mm, 150mm
Operating Temperature: +5° to 40°C

Request a Quote

24V Powered Roller Conveyors Options & Accessories

Roller Materials:

Mild steel Zinc plated
PVC
Stainless Steel

Frames Materials:

Mild Steel Powder Coated (colour to suit your preference)
Stainless Steel

Standard Roller Diameters:
20mm, 30mm, 40mm, 50mm, 60mm, 63mm, 76mm, 80mm, 89mm, 102mm

Control Options:

PEC
Start Stop
Remote Stop

*To learn more about our roller range please see the conveyor rollers page.

Recent 24V Powered Roller Conveyor projects

Fixed Drive Powered Roller Conveyors

Ideal for transportation of unit loads such as cartons or totes. This driven conveyor uses 24-volt self-contained motors to drive groups of rollers transporting the product down the conveyor. With fewer moving parts than traditional motors, the 24 Volt driven conveyor requires less maintenance and is safer for users.

Zero Pressure Accumulation Roller Conveyors

24 Volt Zero pressure accumulation powered conveyors use photo electric cells and zone control cards to hold products in place along the line until the zone in front of them is clear. The zero pressure accumulation conveyor uses 24-volt motorised conveyor rollers to move the rollers in each zone.

Why choose a Spaceguard 24V Roller Conveyor?

Made to Order to suit your exact requirements
Servicing & Installation are available
High-quality materials & components
Helpful sales & support teams

Request a Quote

Roller Conveyor Modules & Accessories

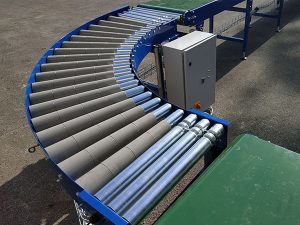

Roller Conveyor Bends

These are particularly useful in applications where a straight conveyor line is not feasible, such as in small warehouses or production areas with limited floor space.

Using a curved conveyor, materials can be transported more efficiently around corners, reducing the need for manual handling and increasing throughput.

As materials are transported smoothly around corners, there is less stress on the conveyor system, reducing wear and tear and extending the system’s lifespan.

Roller conveyor bends can also be integrated into existing conveyor systems, providing greater flexibility in terms of material handling and layout.

Roller Conveyor bends are a cost-effective way to move materials around corners or to navigate around obstacles.

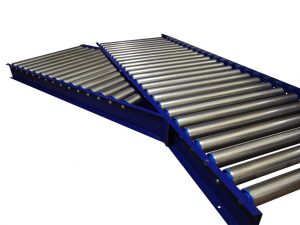

Roller Conveyor Merges

Roller conveyor merges are commonly used in manufacturing and distribution facilities to improve material handling efficiency by allowing multiple conveyor lines to merge into a single line. They are particularly useful in applications where materials need to be consolidated from multiple conveyor lines into a single output, such as in sorting and distribution centers.

By consolidating materials from multiple conveyor lines into a single output, roller conveyor merges can improve sorting accuracy and reduce the risk of errors.

Roller conveyor merges are designed to be robust and reliable, reducing the likelihood of downtime and maintenance requirements.

Roller Conveyor Switches

Please contact us for further information

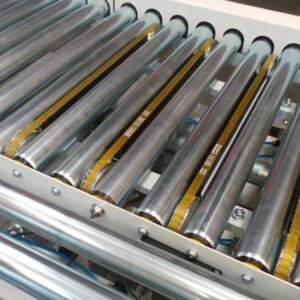

Roller Conveyor Transfers

Roller conveyor transfers are commonly used in manufacturing and distribution facilities to improve material handling efficiency by allowing materials to be transferred smoothly and efficiently between different conveyor lines.

Roller conveyor transfers help to reduce the need for manual handling and increases throughput. They can also be easily integrated into existing conveyor systems, providing greater flexibility in terms of material handling and layout.

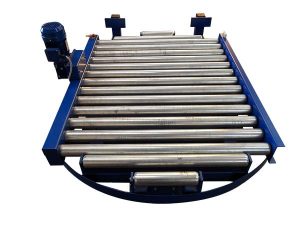

Roller Conveyor Turntables

Roller conveyor turntables are commonly used in manufacturing and distribution facilities to improve material handling efficiency by allowing materials to be rotated smoothly and efficiently to change direction. They are particularly useful in applications where materials need to be transferred between conveyor lines at different angles, such as when changing the orientation of products on a production line.

Roller conveyor turntables help to streamline material flow by allowing materials to be rotated smoothly and efficiently to change direction, reducing the need for manual handling and increasing throughput. They can be easily integrated into existing conveyor systems, providing greater flexibility in terms of material handling and layout.
