These belt conveyor systems are suitable for a wide range of industries, we have three standard models to suit any application – the B80, the B113, and the B135.
Medium duty belt conveyors are available as both standalone units or for integration into machines and systems.
Standard medium duty belt conveyors are available on a short lead time, each built using quality components from proven designs. These reliable conveyors can be supplied at any length to suit your requirements.
The belt conveyor frames and supports are manufactured from mild steel which is powder-coated in RAL 5010 or a colour of your choice.
Stainless steel varieties are also available for food and pharmaceutical environments. We also manufacture modular belt conveyors which are particularly suited for food use.
We stock a range of belt materials so you can choose one to suit your application, in many cases these industrial belt conveyors are supplied with a food-grade 2 ply PVC belt in green.
Our helpful sales team is available to answer your questions or to offer free quotations.
Request A Quote
Please fill in the form below and a specialist will contact you to find out about your exact needs, possibly schedule a site visit and/or provide a comprehensive quote.
If you would like a quote immediately, please provide some details about what you need including dimensions where possible. If you don’t know exactly what you need, just let us know what you’re trying to achieve and we will help you find the most suitable products.
As a manufacturer of industrial automation equipment, we are able to supply a wide range of conveyors and accessories. Please contact our sales team to discuss your specific requirements on 01482 363445 or email sales@spaceguard.co.uk
What do you need from your belt conveyors?
Do you need storage, packaging dispensers, IT integration, or accessories?
We will offer advice if you need any help.
Once you know what you want, send it over to us.
Our expert in-house design team will then produce 3D drawings & renders so you can visualise your belt conveyor clearly.
At this point, you can make changes as necessary before finalising the design.
Once you’re happy with it we can discuss your preferred payment method & terms.
Once payment terms have been agreed, our skilled manufacturing team will build your belt conveyors.
You can have them installed or shipped directly to you from our East Yorkshire factory.
Our in-house design team have in-depth experience in working with companies to create both standard and bespoke solutions for all industrial environments. From warehouse packing lines to factory production and assembly lines, we guarantee that Spaceguard belt conveyors will be an efficient, reliable and cost-effective product transport method for your business.
You can also take advantage of our installation service as well as ongoing conveyor maintenance.
Please contact our helpful sales team with your requirements to receive a free quotation.

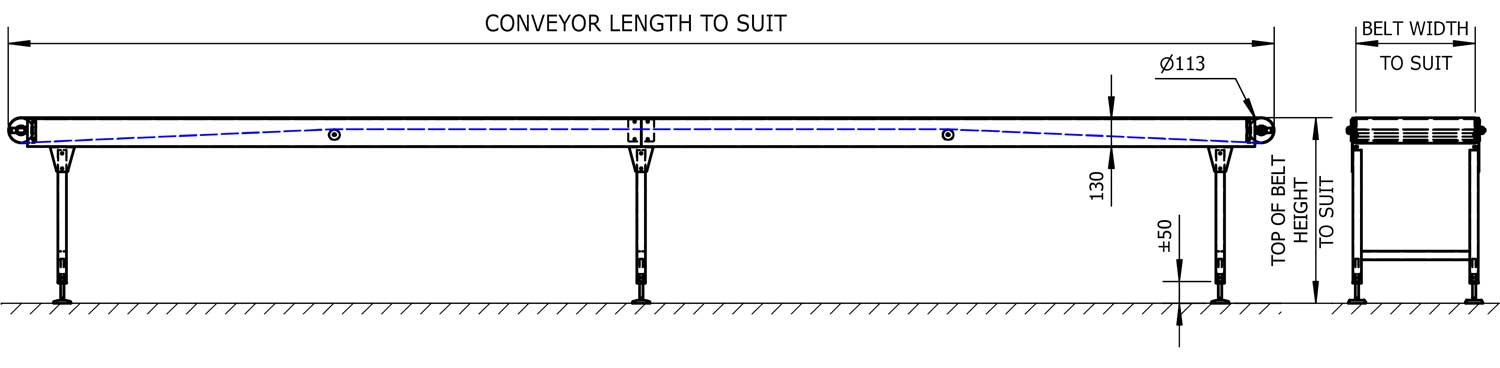

| Length: | 500mm to 20,000mm |
| Belt Width: | 300mm to 2000mm |

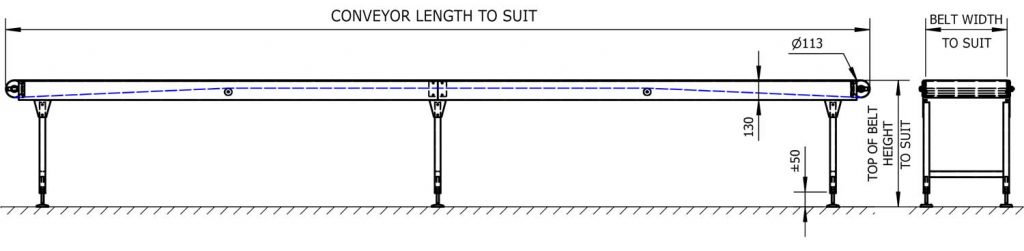

| End Roller Diameters: | Model B80 – 80mm Model B113 – 113mm Model B135 – 135mm |
| Roller materials: | Mild steel / Stainless Steel |
| Belt Type: | 2ply PVC / Smooth top / Grip face / Anti-static / Silicone / Rubber |
| Drive Type: | 3 Phase Drum Motor / Geared motor |
| Drive position: | End drive / Underslung |
| Conveyor loading: | Model B80 – 20kg per metre Model B113 – 75kg per metre Model B135 – 150kg per metre |
| Speeds: | From 300mm per minute to 60 metres per minute |
| Conveyor Construction: | Formed steel slider bed |
| Frame material: | Mild steel or Stainless steel (2b) |
| Conveyor Finish: | Epoxy powder coated (RAL5010) or Stainless Steel |
| Supports: | Welded ‘H’ section |
| Support Base: | Adjustable feet (+/- 50mm) or Castors |
| Control Options: | Start/Stop, Variable Speed, Remote Stop |
| Standard Input Voltage: | 1ph 230V 3ph 400V |
| Optional Extras: | PEC Control Adjustable or fixed side guides Swan neck or nose over design Quick-release belt Inclined flighted belts Small end pulley Forward / Reverse |
